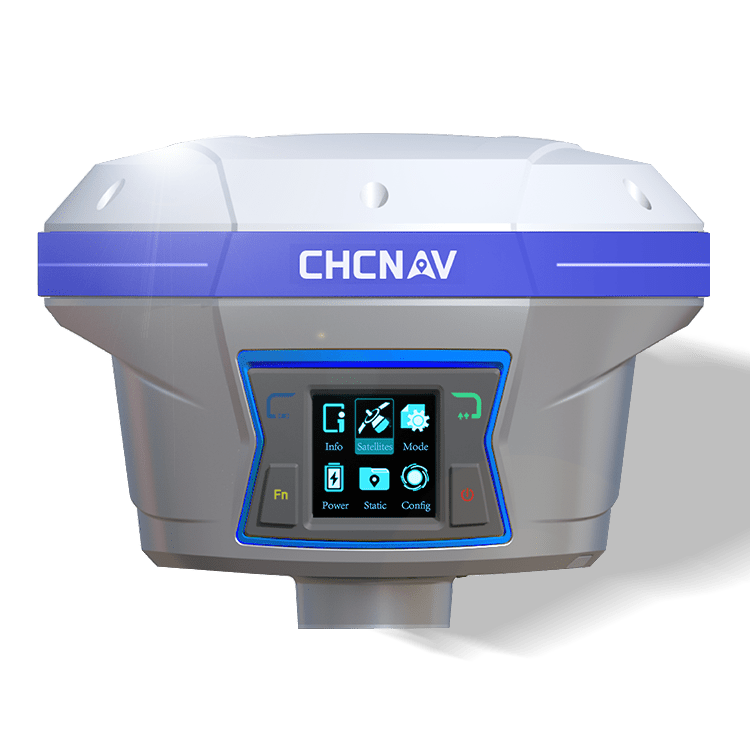

i90 PRO IMU-RTK GNSS

Product Detail

Product Tags

i90 IMU-RTK GNSS

Enhanced IMU-RTK GNSS receiver with full GNSS tracking + L-Band

MULTI-CONSTELLATION TRACKING

Combine GPS, Glonass, Galileo and BeiDou

Powered by a 336-channel GNSS core engine, the i90 Pro provides robust and reliable RTK position to any surveying project and positioning application.

L-BAND PPP CORRECTIONS

Compatible with L-Band and RTX™ correction signals

Connected to 3rd party L-Band corrections services, the i90 Pro GNSS provides accurate, sub-decimeter positioning in virtually all regions where RTK networks, GSM coverage or traditional GNSS base station are not available.

EXTENDED CONNECTIVITY

Instant NFC pairing of your controller

The i90 Pro GNSS combines high-end connectivity modules: Bluetooth, Wi-Fi, NFC, 4G, and UHF radio modem. The 4G modem brings ease of use when working within RTK networks. The internal UHF radio modem allows long-distance base-to-rover surveying up to 5 km

HIGH ACCURACY. ANYWHERE

Boost survey and stakeout speed by up to 30%

The i90 GNSS build-in IMU ensures interference-free and automatic pole-tilt compensation in real-time. 3 cm accuracy is achieved with pole-tilt range of up to 30 degrees.

OVERVIEW

The i90 Pro GNSS receiver combines the latest CHCNAV’s IMU-RTK technology and the compatibility with L-Band corrections services to extend RTK positioning, in any locations.

Unlike the standard MEMS-based GNSS receivers, the i90 Pro GNSS IMU-RTK combines state-of-the-art GNSS RTK engine, a high-end calibration-free IMU sensor and advanced GNSS tracking capabilities to dramatically increase RTK availability and reliability.

The i90 automatic pole-tilt compensation boosts survey and stakeout speed by up to 30%. Construction and land surveying projects are achieved with high productivity and reliability pushing the boundaries of conventional GNSS RTK survey
