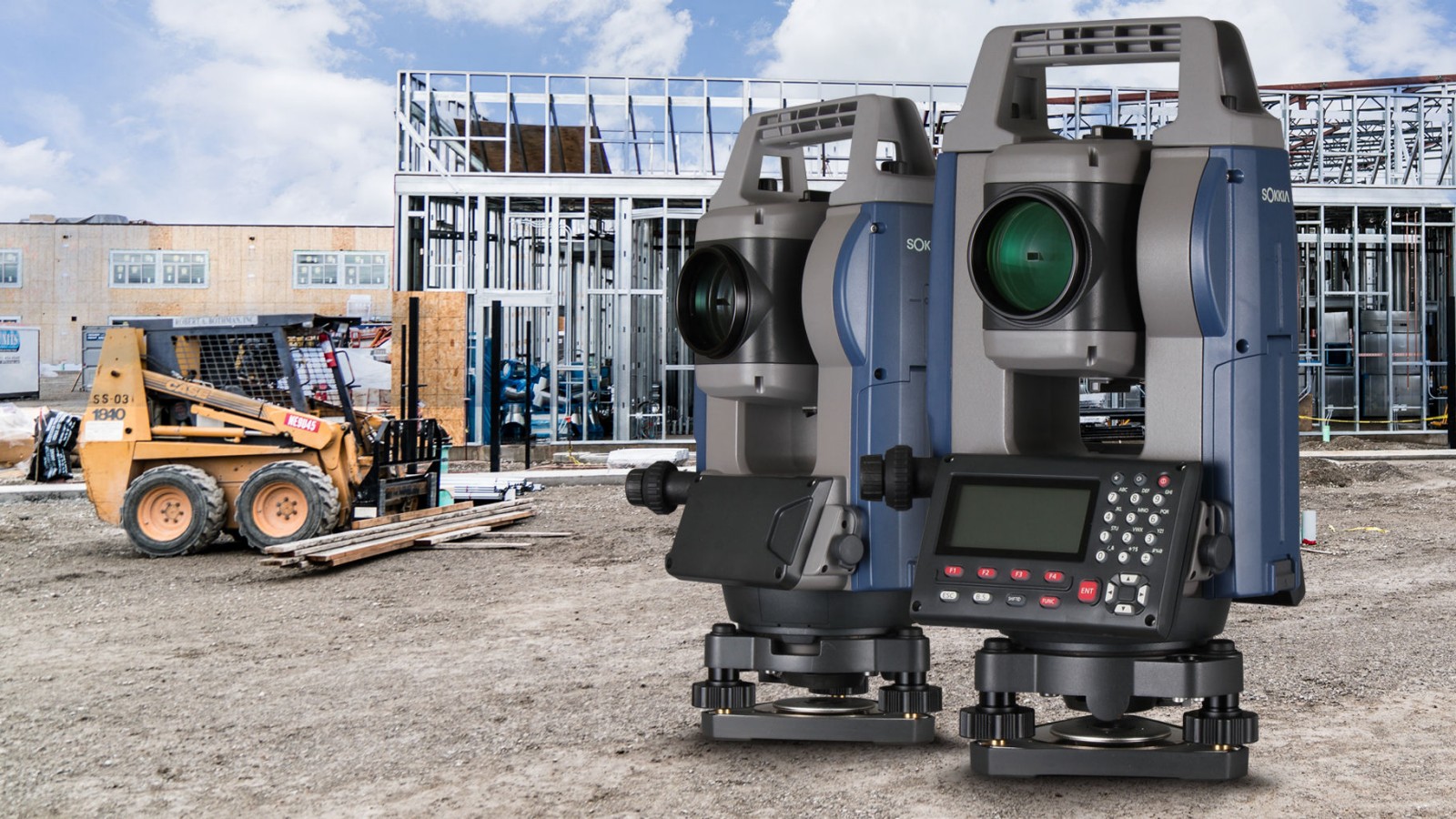

Sokkia IM52 Total station
iM-50 series
intelligence Measurement Station
SOKKIA
Surveying
Civil Engineering
Building Construction
Total Stations
High Quality, High Return!
• Construction and Survey Application Software
• Fast & Accurate & Powerful Measuring Distance Feature
• 500m Long Range Reflectoress Measurement
• Rugged & Waterproof Design
• Reliable Large Volume Internal Memory
Fastand Powerful Reflectorless EDM

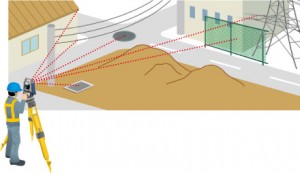

The ultra-narrow EDM beam can precisely measure walls, corners, manholes on the road surface, even chain-link fences and tree branches.
- Fast and accurate pinpointing with phase shift technology.
- Fast distance measurement of 0.9s regardless of object.
- Minimum reflectorless measuring distance - just 30cm.
- Improved collimation with super-bright pointer.
- Smaller EDM beam spot size for minimal distance measuring error.
- Dependable measuring even at shallow incidence angles.
- Ensures accurate reflective sheet distance measurement.
Japan Quality Products
We perform the tough environmental tests to ensure long-term operation even under the rough site environments.
GM Series total stations are thoroughly inspected with dust-proof and water-proof test chambers.
In addition, the various tests against vibration, drop, temperature, and humidity were successfully passed to achieve the best environmental spec. Also, the measuring distance accuracy test on base line and the instrument leveling and angle accuracy test and adjustment by collimator system ensure your satisfaction on GM Series product quality.
